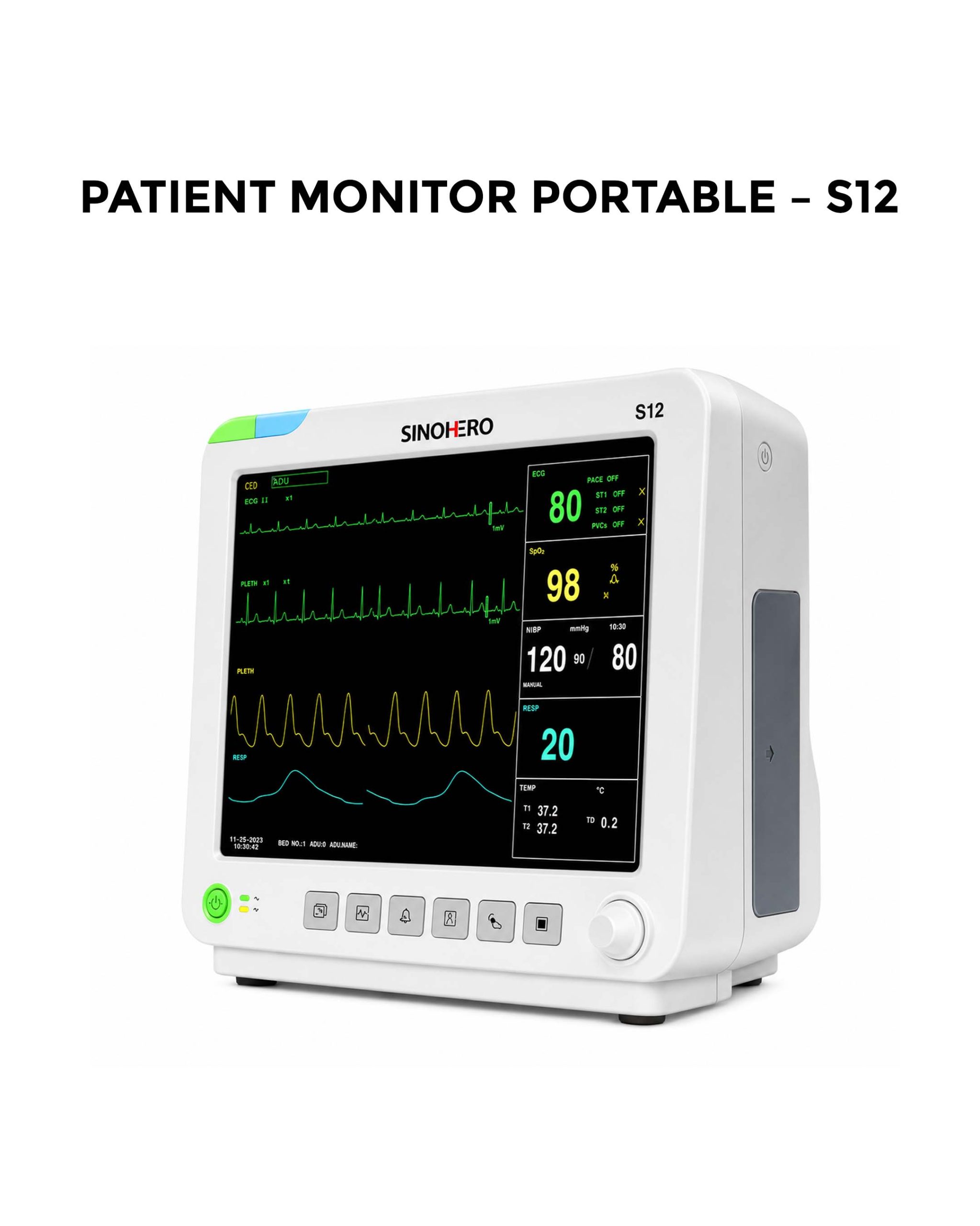

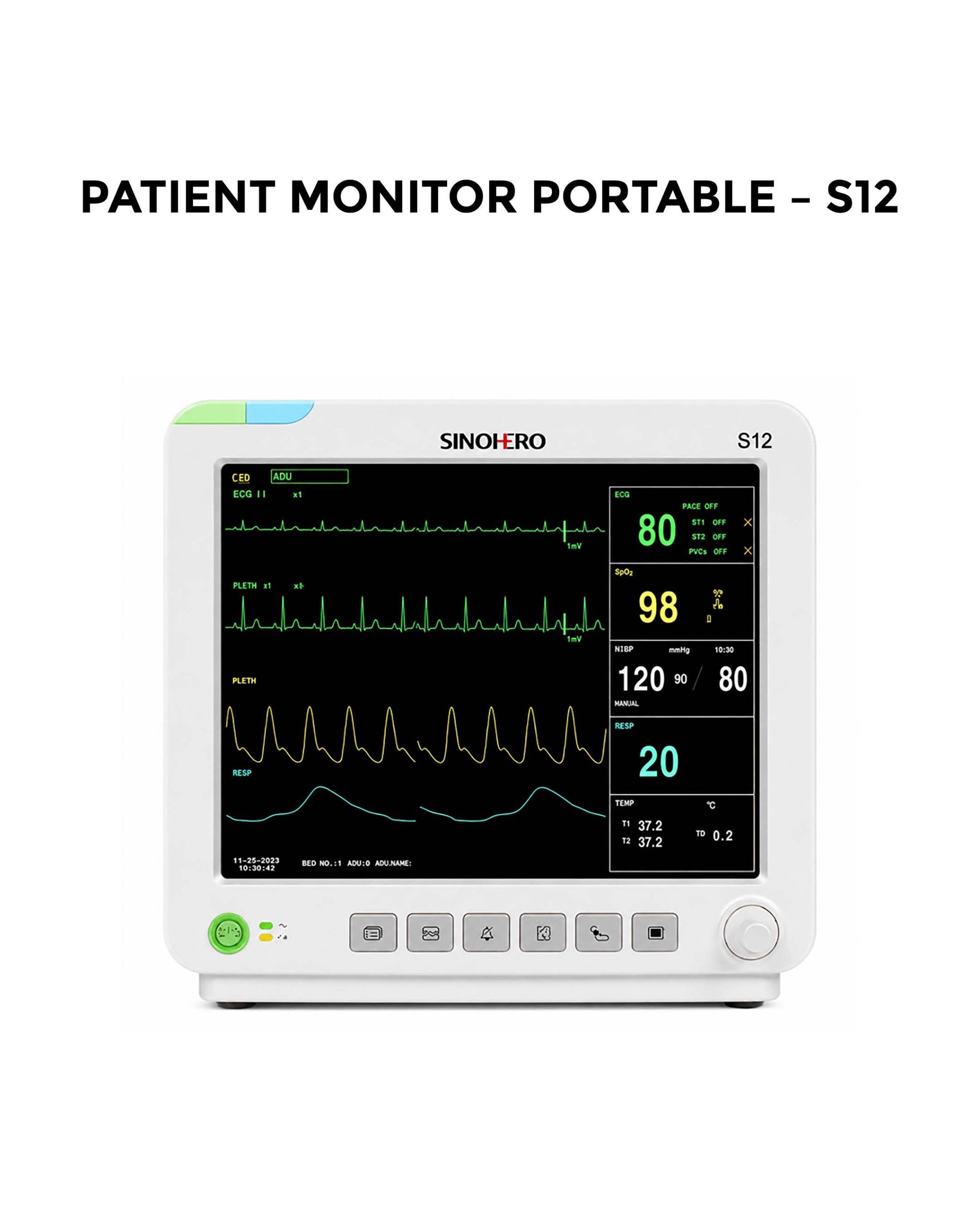

Patient Monitor Portable – S12

The S12 monitor offers a wide range of functions suitable for clinical monitoring of adult, pediatric, and neonatal patients. Users have the flexibility to choose different parameter configurations based on specific requirements.

Powered by 100-240V~, 50/60Hz, the monitor features a 12.1” color TFT LCD that displays real-time data and waveforms. It can simultaneously display eight-channel waveforms and complete monitoring parameters, with an optional 48mm thermal recorder available. Additionally, the monitor can be connected to a central monitoring system through either wired or wireless networks, enabling network monitoring capabilities.

This versatile device can monitor various parameters such as ECG, RESP, NIBP, SpO2, and dual-channel TEMP. All these parameter measurement modules, along with the display and recorder, are integrated into a single compact and portable equipment. Moreover, the monitor includes a replaceable internal battery, which enhances convenience during patient transportation.
